Este producto ya no se fabrica. Es posible que queden existencias. Consulte las alternativas que figuran a continuación en "Productos similares" o póngase en contacto con nosotros directamente.

Productos alternativos para este producto descatalogado:

ISD-1.6-SP-Vxx
Detector for fast, time-resolved (ns) radiant power measurement of pulsed laser diodes and LEDs

ISD-1.6-Si

Integrating sphere detector for Laser power in W

  • 16mm diameter sphere, 3mm diameter port
  • BaSO4 coating
  • 400 nm - 1100 nm responsivity
  • for the usage with optometers and signal amplifiers
ISD-1.6-Si

ISD-1.6-Si and ISD-1.6-Si-FC: 16mm Ø Integrating Sphere Detector for Laser Power

Compact Size Integrating Sphere Detector

The ISD-1.6-Si integrating sphere detector employs a 16 mm diameter Barium Sulfate (ODP97) coated integrating sphere with 3mm measurement port and a Silicon photodiode.


Direct Irradiation of Fiber Connector

The ISD-1.6-Si-FC is designed for applications where both the power and spectral distribution of Laser diodes must be measured. High resolution spectrometers are needed to measure the narrow spectra Laser diodes so the FC fiber connector is placed opposite the measurement port of the integrating sphere to allow direct irradiation of the fiber for maximum radiation input to the spectrometer.


Traceable Calibrations

Calibration of spectral radiant power sensitivity in W is performed at Gigahertz-Optik’s Calibration Laboratory for Optical Radiation Quantities

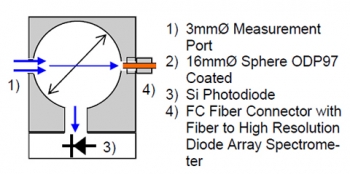

ISD-1.6-Si-FC Principal Design

ISD-1.6-Si-FC Principal Design

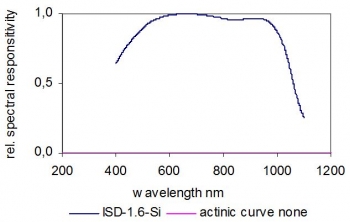

ISD-1.6-Si Typical Spectral Responsivity

ISD-1.6-Si Typical Spectral Responsivity
