ODP97

White Diffuse Reflecting Barium Sulfate Coating

  • High quality barium sulfate in water solution with low binder content
  • Spectral range from 350 nm - 2500 nm with 97% reflectivity @ 555 nm
  • Solution for spray application or by brush (ready to use)
  • Decades of experience
  • Product with years of experience and optimization
ODP97

Barium Sulfate

Barium Sulfate (BaSO4) is a white powder used in optical applications due to its suited flat spectral reflectance response within the UV-A to NIR wavelength range and perfectly usability in terms of the coating process. It is the quasi-standard in integrating sphere coating due to its very good optical properties. In solution Barium Sulfate exhibits a diffuse reflectance characteristic and is resistant to high intensity optical radiation. The powder can be compressed into tablet form for use as reflectance and can also be supplied in solution for spray coating large surfaces.

At Gigahertz-Optik, we draw on decades of experience in the production and processing of barium sulfate solution and will be happy to advise you on your application.

Integrating Sphere Coating

Gigahertz-Optik developed and manufactures its own barium sulfate solution for coating its world class line of integrating spheres and accessory products. Carefully selected materials and preparation processes are used to produce the coating.

ODP97

Gigahertz-Optik also offers the coating as a standard sales product under the product name ODP97. ODP97 is a spray ready barium sulfate & water mixture for use as a coating for diffuse reflectance plates and integrating spheres. ODP97 is supplied in a 1 liter bottle.

ODM98

In some applications ODM98 Synthetic White Diffuse Material, a PTFE based scattering material which is CNC machined, is also interesting. Especially for small integrating spheres or special shapes that need to be CNC milled directly.

during the coating process

during the coating process

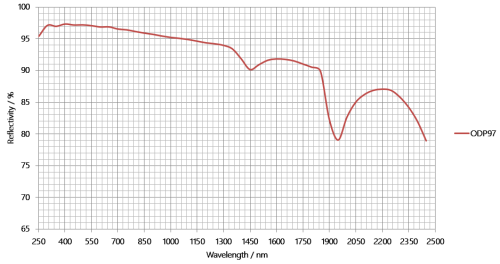

Typical Spectral Reflectance

Typical Spectral Reflectance

Typical Diffuse Reflectance Characteristic

Typical Diffuse Reflectance Characteristic

Coating Services

Coating Services
