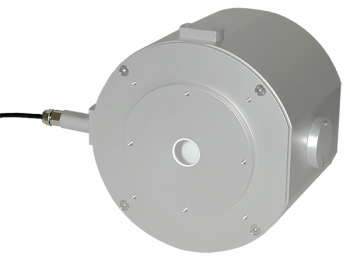

The UPK-100-L integrating sphere is one of Gigahertz-Optik’s compact size models with ODM98 coating.
The 100 mm diameter integrating sphere with 15 mm diameter measurement port offers high light throughput within the spectral range from 250 nm to 2500 nm. Its unique collar baffle design greatly avoids direct illumination of the detector port from the light input port in a conventional 90° port position sphere design. The baffle also makes it possible to operate up to 4 detectors or fiber light guide connectors on the sphere at the same time. The detector ports provides an interface for direct mounting of Gigahertz-Optik’s PD-11, TD-11 and VL-11 type light detectors and UFC-11 type fiber connectors.
Gigahertz-Optik’s calibration laboratory offers traceable spectral radiant power sensitivity calibration in the wavelength range from 250 nm to 1800 nm.
| Specification | |||
| Coating | ODM98 |
||
| Sphere diameter | 100 mm |
||
| Measurement Port Diameter | 15 mm |
||
| Detector port | 1 x UP-DP-11 (PD-11, TD-11, VL-11, UFC-11) Up to three more UP-DP-11 in +/-90° position can optional supplied |
||
| Mounting | M6 and 1/4” threaded holes |
||
| Produktname | Product Image | Description | Show product |
|---|---|---|---|
| VL-1101 |  |
Photometric detector head with VL-11 mount. Features: modular detector for use with integrating spheres, front lenses etc. For use with optometers and signal amplifiers |
|
| TD-11VL01 |  |
Photometric, temperature stabilized detector with DP-11 mount. Features: for use with integrating spheres, Operation temperature 50 °C, for use with optometers and signal amplifiers |
|
| PD-11 series |  |
Detector head with DP-11 mount. Features: modular detector for use with integrating spheres, front lenses etc, Si, SiLP, InGaAs, SiC, GaP photodiodes, for use with optometers and signal amplifiers |
|
| UFC-11 |  |
Fiber adapter for use with UP and UM type integrating spheres. Features: SMA, FC, SC and ST connectors. |
