This Product is discontinued, please contact us if you are still interested.

ISD-5P-Si

Integrating sphere detector for Laser power in W. Features: 50 mm dia, 10 mm dia port, synthetic ODM98 coating, 400 nm - 1100 nm responsivity, for the usage with optometers and signal amplifiers, Calibration certificate

ISD-5P-Si

Integrating Sphere Detector

The ISD-5P-Si integrating sphere detector employ a 50 mm diameter ODM98 coated integrating sphere with 10mm diameter measurement port. The unique collar baffle limits direct irradiation of the detector from dispersed light. The collar baffle enables optional detector ports to be added for additional detectors, fiber connectors or auxiliary use. The ISD-5P-Si features a Si photodiode detector for use in the spectral range from 400 to 1100nm spectral range.

Synthetic Coating

Gigahertz-Optik’s synthetic ODM98 coating offers almost perfect hemispherical diffuse reflection for best light distribution inside the sphere.

Traceable Calibrations

Calibration of spectral radiant power sensitivity in W is performed in 10 nm steps from 400 to 1100 nm at Gigahertz-Optik’s Calibration Laboratory for Optical Radiation Quantities.

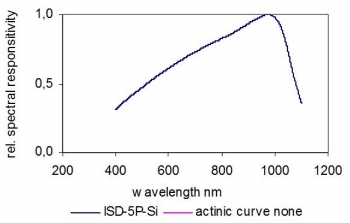

Typical Spectral Responsivity

Typical Spectral Responsivity
