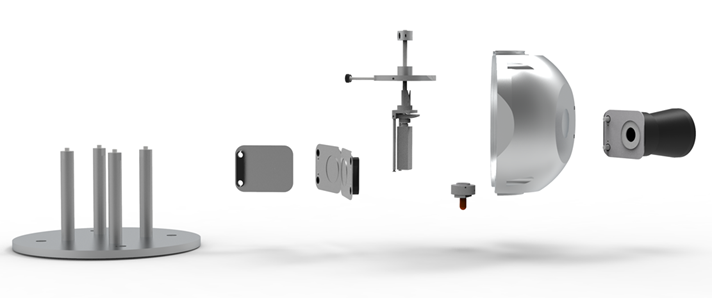

Integrating Spheres for Reflection, Transmission and Absorption

Integrating spheres and accessories optimized for the measurement of reflection, transmission, absorption and photoluminescence.

Integrating spheres optimized for the measurement of reflection, transmission, absorption and photoluminescence.

Model Image Sphere Diameter Spectral range / nm Measurement ports Detector port Geometry Remark
UPB-150-ART
UPB 150 ART.33

150 mm

(300 - 2500) nm
5 knife-edged, 30 mm Ø
30 mm Ø Interchangeable adapters
8°/d, 0°/d, single & dual beam
Knife-edged ports for large acceptance angle of scattered radiation. Slide & Fix mounting system
UPB-150-ARTA
UPB 1501 ARTA.65

150 mm

(300 - 2500) nm
5 knife-edged, 30 mm Ø
30 mm Ø Interchangeable adapters
8°/d, 0°/d, single & dual beam
Universal transmission, reflection, absorption and photo-luminescence. Sample holder for plates and cuvettes in the center of the sphere.
UPG-150-ART
UPG 150 ART.35

150 mm

850 nm - 20 µm
5 knife-edged, 30 mm Ø
30 mm Ø Interchangeable adapters
8°/d, 0°/d, single & dual beam
Diffused gold coating with high reflectance and good scattering effect.

Please see also our Spectrophotometers, Laboratory and Analysis Systems with integrating sphere based solutions.

Accessory range including sample holders, cuvette holders, port reducers, light traps and port plugs.

Model Description Remark
CLS-21 Collimated light source for use with integrating spheres Two beam options: Collimated beam (diameter 1 mm to 10 mm, angle 3,2° full angle), focused beam for distance 150 mm sphere diameter (spot size <7mm)
UPB-150-ART-Z01
Port plug. Flat surface with ODP97 coating.
For UPB-150-ART and UPB-150-ARTA
UPB-150-ART-Z02
Port reducer. Port diameter as specified in 0.1mm steps. Flat surface with ODP97 coating.
For UPB-150-ART and UPB-150-ARTA
UPB-150-ART-Z02-3
Port reducer. 3mm port. Flat surface with ODP97 coating.
For UPB-150-ART and UPB-150-ARTA
UPB-150-ART-Z02-10
Port reducer. 10mm port. Flat surface with ODP97 coating.
For UPB-150-ART and UPB-150-ARTA
UPB-150-ART-Z02-15
Port reducer. 15mm port. Flat surface with ODP97 coating.
For UPB-150-ART and UPB-150-ARTA
UPB-150-ART-Z02-25
Port reducer. 25mm port. Flat surface with ODP97 coating.
For UPB-150-ART and UPB-150-ARTA
UPB-150-ART-Z03
Sample holder
For UPB-150-ART and UPB-150-ARTA
UPB-150-ART-Z04
Light trap
For UPB-150-ART and UPB-150-ARTA
UPB-150-ART-Z05
UMPF-0.5 detector adapter with baffle.
For UPB-150-ART and UPB-150-ARTA
UPB-150-ART-Z06
UMPF-1.0 detector adapter with baffle.
For UPB-150-ART and UPB-150-ARTA
UPB-150-ART-Z07
UMPF-2.0 detector adapter with baffle.
For UPB-150-ART and UPB-150-ARTA
UPB-150-ART-Z09
Port plug with spherical surface
For UPB-150-ART and UPB-150-ARTA
UPB-150-ART-Z10
Port reducer. Port diameter as specified in 0.1mm steps. Spherical surface with ODP97 coating.
For UPB-150-ART and UPB-150-ARTA
UPB-150-ARTA-Z01
UMPF-0.5 detector adapter with baffle aligned to the sphere center
For UPB-150-ARTA
UPB-150-ARTA-Z03
Revolving base plate for the sample holder
For UPB-150-ARTA
UPB-150-ARTA-Z04
Cuvette holder
For UPB-150-ARTA
UPB-150-ARTA-Z05
Clamp holder
For UPB-150-ARTA
UPB-150-ARTA-Z06
Port plug for the upper port, spherical shape
For UPB-150-ARTA
UPG-150-ART-Z01

Port plug. Flat surface with Au coating.
For UPG-150-ART Gold sphere
UPG-150-ART-Z02
Port reducer. Port diameter as specified in 0.1mm steps. Flat surface with Au coating.
For UPG-150-ART Gold sphere
UPG-150-ART-Z02-3
Port reducer. 3mm port. Flat surface with Au coating.
For UPG-150-ART Gold sphere
UPG-150-ART-Z02-15
Port reducer. 15mm port. Flat surface with Au coating.
For UPG-150-ART Gold sphere
UPG-150-ART-Z02-25
Port reducer. 25mm port. Flat surface with Au coating.
For UPG-150-ART Gold sphere
UPG-150-ART-Z03
Sample holder
For UPG-150-ART Gold sphere
UPG-150-ART-Z04
Light trap
For UPG-150-ART Gold sphere
UPG-150-ART-Z05
UMPF-0.5 detector adapter with baffle.
For UPG-150-ART Gold sphere
UPG-150-ART-Z06
UMPF-1.0 detector adapter with baffle.
For UPG-150-ART Gold sphere
UPG-150-ART-Z07
UMPF-2.0 detector adapter with baffle.
For UPG-150-ART Gold sphere
