BTS256-EF – Highquality, spectral light and color measurement meter

The BTS256-EF is a high-quality measuring device for photometric and colorimetric measurement of general lighting products and conditions. A special feature of the meter is a Bi-Tec sensor. This consists of a fast photodiode and a CMOS array detector. Thus, the meter supports all the requirements of a modern light meter:

  • Cosine field of view illuminance measurement for accurate evaluation of extended illumination (class B DIN 5032 part 7 or AA according to JIS C 1609-1:2006)
  • Flicker measurement
  • Spectral measurement technology, required for LED light, color, color rendering, color effects
  • Photodiode for synchronization to pulse width modulated light and flicker measurement
  • alpha-opic illuminance and irradiance measurement (CIE S 026:2018)
  • Compact and robust design for mobile use

 BTS256-EF – Flicker meter

In its function as a light-flicker meter, the BTS256-EF supports all current flicker measurements:

  • Percent Flicker (IEEE Std 1789-2015, IES: RP-16-10, CIE TN 006:2016, CIE TN 012:2021)
  • Flicker Index (IEEE Std 1789-2015, IES: RP-16-10, CIE TN 006:2016, CIE TN 012:2021)
  • FFT Frequency component analysis
  • Pst Short term flicker severity (CIE TN 006:2016, CIE TN 012:2021, IEC TR 61547:2020)
  • Stroboscopic Visibility Measure, SVM (CIE TN 006:2016, CIE TN 012:2021, IEC TR 63158)
  • Mp ASSIST Flicker perception metric (CIE TN 012:2021)
  • Joint Appendix JA10

In addition, the BTS256-EF allows flicker tests according to IEC TR 61547:2020 when operated in combination with power supply LPS-CH-500. These tests aim to probe flicker stability when light sources are operated in an AC circuit under the influence of disturbance signals.

BTS256-EF – Meter for photosynthetically active radiation (PAR) in plant growth

LED grow lights need to be measured in terms of the Photosynthetically Active Radiation (PAR) they produce. This function is supported by the BTS256-EF. The Photosynthetic Photon Flux Density (PPFD) in µmol/(m²*s) can be measured which is a measure of the total number of photons within the PAR wavelength range that reach a surface each second per square meter area. Furthermore, the daylight integral (DLI) can be displayed which represents the total amount of photosynthetically active radiation received by a plant in the course of a day.

Calibration of the BTS256-EF

One essential quality feature of photometric devices is their precise and traceable calibration. The BTS256-EF is calibrated by Gigahertz-Optik’s calibration laboratory that was accredited by DAkkS (D-K-15047-01-00) for the spectral responsivity and spectral irradiance according to ISO/IEC 17025. The calibration also included the corresponding accessory components. Every device is delivered with its respective calibration certificate.

 Options for the BTS256-EF light meter

  • Software development kit for integration of the device in the user’s own software
  • In combination with software tool S-T-Flicker and the programmable AC Source LPS-CH-500 Gigahertz-Optik GmbH offers a functional extension of the BTS256-EF for an test system according to the IEC TR 61547-1:2020 Equipment for general lighting purposes - EMC immunity requirements - Part 1: An objective light flicker and fluctuation immunity test method.
BTS256-EF for complex measurements in lighting technology, including flicker measurement

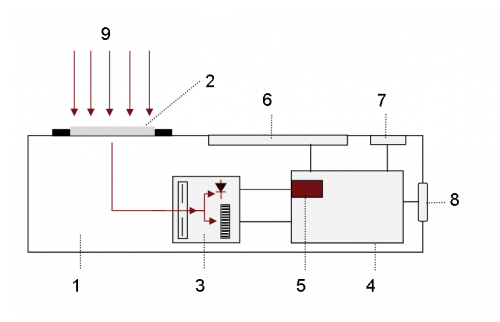

Principle illustration of the BTS256-EF
1) BTS256-EF
2) Precision cosine diffuser
3) BiTec sensor with Si photodiode, CMOS diode array spectrometer and shutter
4) Photometric Si-photodiode with fast amplifier
5) Microprocessor
6) Display
7) Control Buttons
8) USB 2.0 interface
9) Light incident
BTS256-EF light meter with precise cosine field of view function

BTS256-EF Flicker Measurement

BTS256-EF Flicker Measurement

BTS256-EF Flicker Measurement

Short description

Spectroradiometer for the illuminance (photopic, scotopic, melanopic), PAR, spectrum, light color, color rendering index, and flicker

Main features

Mobile measurement device, BiTec sensor with a V-lambda photodiode and low stray light CMOS spectroradiometer with a 10 nm optical bandwidth and additional optical bandwidth correction (CIE214), remote-controlled offset shutter, precise cosine-corrected field of view, data  logger, automatic PWM synchronization, flicker measurement of Pst, SVM, Flicker Index, etc.

Measurement range

1 lx to 199,000 lx, 360 nm to 830 nm, flicker frequency between 0.25 Hz and 40 kHz

typical applications

Precise spectral light meter for the lighting industry


Factory calibration, traceable to international standards


class B DIN 5032 part 7 or AA according to JIS C 1609-1:2006
class A DIN 5032 part 7 for f1’ and f4, or general precision class according to JIS C 1609-1:2006
class L DIN 5032 part 7 for U response, IR response, f3, f6 and f7


Bi-Technology sensor with a photometric broadband detector and a array spectrometer. Integrated aperture for automatic dark signal adjustment.

Input optics

Diffuser window with 20mm diameter, cosine corrected field of view, f2 Error ≤ 3%


Spectral responsivity with fine CIE photometric matching. Online correction of the photometric matching through spectral measurement data (spectral missmatch factor correction)


Measurands: Percent flicker (IES:RP-16-10, CIE TN 006:2016, CIE TN 012:2021), flicker index (IES:RP-16-10, CIE TN 006:2016, CIE TN 012:2021), flicker frequency, fast fourier transformation (FFT), Pst  short-term flicker severity Pst (CIE TN 006:2016, CIE TN 012:2021, IEC TR 61547:2020), stroboscopic effect visibility measure SVM (CIE TN 006:2016, CIE TN 012:2021, IEC TR 63158), Mp ASSIST, joint appendix JA10.

The BTS256-EF has a limited internal memory and can thus only access the following frequency range when used as a handheld meter (without a PC):

Measurement Time (Sensor) Measurement Time (Flicker) Sampling Rate Upper Cut-Off Frequency Lower Cut-Off Frequency Frequency uncertainty at acceptable S/N ratio FFT frequency resolution
50 ms 41.0 ms 20 µs 5 kHz 60 Hz 1%+-0.5 Hz 25 Hz
100 ms 81.9 ms 40 µs 5 kHz 30 Hz 1%+-0.5 Hz 12.5 Hz
200 ms 163.8 ms 80 µs 2.5 kHz 15 Hz 1%+-0.5 Hz 6.3 Hz
500 ms 327.7 ms 160 µs 1.2 kHz 8 Hz 1%+-0.5 Hz 3.2 Hz
1000 ms 655.4 ms 320 µs 0.6 kHz 4 Hz 1%+-0.5 Hz 1.6 Hz
3000 ms 2620 ms 1280 µs 150 Hz 1 Hz 1%+-0.1 Hz 0.4 Hz
6000 ms 5240 ms 2560 µs 75 Hz 0.5 Hz 1%+-0.05 Hz 0.2 Hz
12000 ms 10486 ms 5120 µs 33 Hz 0.25 Hz 1%+-0.02 Hz 0.1 Hz

The measurement range extends to the following range when the BTS256-EF is used in combination with a PC and the S-BTS256 or S-SDK-BTS256 software:

Measurement Time (Sensor) Measurement Time (Flicker) Sampling Rate Upper Cut-Off Frequency Lower Cut-Off Frequency Frequency uncertainty at acceptable S/N ratio

FFT frequency resolution

5 ms


180000 ms (3 min)

5 ms


180000 ms

25 µs min. (40kHz) 5 kHz

2.5/meas. time

1 % ± 0.5 Hz

1/meas. time

Spectral Detector

CMOS diode-array

spectral range

(360 - 830) nm

Optical Bandwidth

10 nm, mathematical optical bandwidth correction according to CIE 214 can be automatically applied

Data Resolution

1 nm

Integration Time

(5.2 - 30000) ms


Automatic aperture for dark signal measurements with the same integration time as that of light measurements. Aperture delay = 100ms.

typical measurement time

199,999 lx ≤ 5ms (white light)

100 lx ≤ 1s (white light)

Color measurement range spectral

(1 - 199,999) lx


Scotopic measurement range spectral (1 - 199,999) lx
Calibration uncertainty of scotopic Illuminance +/-2.2%

Peak wavelength

+/- 1nm

Dominant wavelength

+/- 1nm

Repeatability Δx and Δy

+/- 0.0001 (Standard illuminant type A)

+/- 0.0002 (LED)

Δy Δx uncertainty

+/- 0.002 (Standard illuminant type A)

+/- 0.005 (typ. LED)

CCT Measurement range

(1700 - 17000) K


+/- 50K (standard illuminant type A)

+/- 4% (depending on the LED spectrum)

CRI (color rendering index)

Ra and R1 to R15

Stray Light

6E-4 (Blue LED)

6E-4 (Green LED)

6E-4 (Red LED)

1E-3 (White LED)

(typical value, measured 100 nm to the left of the peak of the LEDs)

Calibration uncertainty

Spectral irradiance

(360 - 399) nm ± 5,5 %
(400 - 479) nm  ± 4 %
(480 - 779) nm ± 3,8%
(780 - 830) nm ± 4,3 %

Spectral irradiance responsivity (360 - 830) nm

Integral Detector
Calibration uncertainty

Illuminance ± 2.2%

f1' (spectral mismatch)

≤6% (uncorrected)

≤3% (f1' a*(sz(λ)) respectively F*(sz(λ)) corrected by spectral data, done automatically by BTS technology)

max. illuminance

≥199,999 lx

Noise equivalent illuminance

≤ 0.01lx



Measurement time

(0.1 - 6000) ms

temperature range

The measured values of the diode are corrected by means of an internal temperature sensor.

f2 (directional response/cosine error)

f2 BTS256 E

spectral responsivity

BTS256 EF Responsivity2


16Bit, 25ns instruction cycle time

Power Supply

5VDC, 450mA per USB


USB 2.0 (Type B USB)

Option WiFi: WiFi 2,4 GHz (external antenna, range > 100m)

temperature range

Operation: +10°C bis +30°C

Storage: -10°C bis +50°C


Splashproof IP54

Transport case

333mm x 280mm x 70mm, 650g


159mm x 85mm x 45mm (Length x Width x Height)


500 g

Type Description File-Type Download
Datasheet BTS256-EF PDF
Brochure Light measurement solutions for general and specialized lighting PDF
Produktname Product Image Description Show product
S-SDK-BTS256 Software Development Kit for BTS256 variants.
S-BTS256 Application software for BTS256 variants.
Article-Nr Modell Description Request / Compare
15308415 BTS256-EF

BTS256-EF meter, user manual (D or E), S-BTS256 user software as a download, USB cable for PC operation and battery charging, USB power adapter (EU, USA or GB), BHO-17 hard-top case

15308416 BTS256-EF WiFi

BTS256-EF WiFi meter, user manual (D or E), WiFi antenna, S-BTS256 user software as a download, USB cable for PC operation and battery charging, USB power adapter (EU, USA or GB), BHO-17 hard-top case

15311565 KP-BTS256EF-E-S

Option: DIN EN ISO/IEC 17025:2018 Test Certificate (DAkkS).

Spectral irradiance measurement and illuminance measurement in wavelength range 360nm to 830nm.

15300751 K-BTS256-E-I

Recalibration of the BTS256-EF. Including calibration certificate.

15311564 KKP-BTS256EF-E-S

Factory Calibration Certificate with DIN EN ISO/IEC 17025:2018 Test Certificate.


15308526 LPS-CH-500

Programmable power supply with reference source impedance

Commissioning and training on request

15298218 S-SDK-BTS256

Software Development Kit; Software and users guide on CD

15308525 S-T-Flicker

Flicker software tool, only usable in combination with LPS-CH-500

Further Information
