Integrating Sphere Construction Kit

A universal kit for the custom configuration of integrating spheres and integrating sphere light sources. The use of standard components provides cost effective and timely implementation. Complete solutions for measuring systems and integrating sphere light sources.

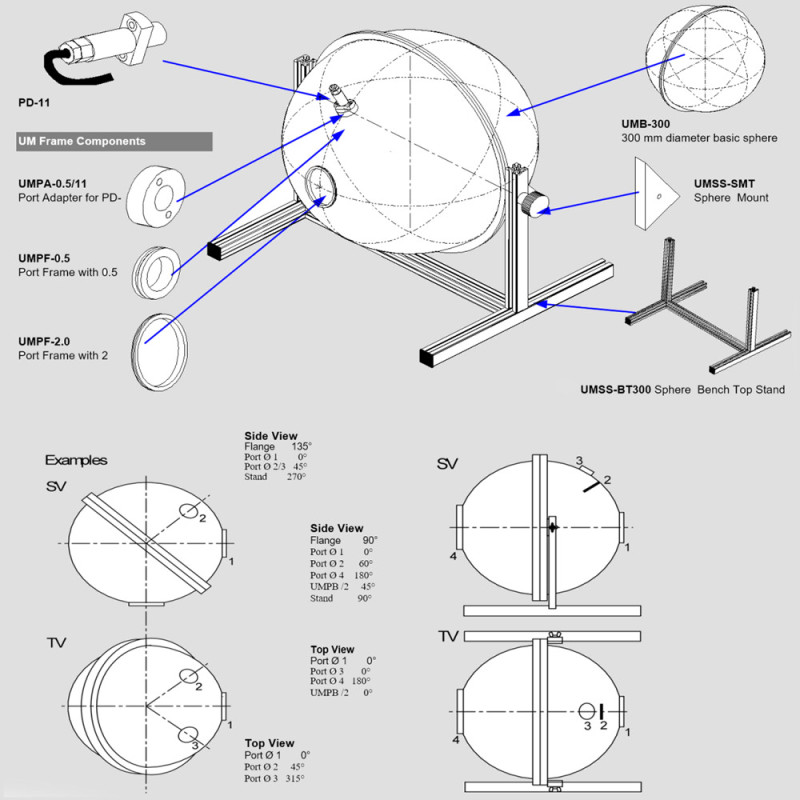

Integrating sphere construction kit design criteria. See this integrating sphere examples and 10 step to your integrating sphere design document for guidance to our modular system

Configuration notes: Openings are made in the base sphere according to the specifications below and into which the port frames are held.

Basic sphere configurations

Model Image Sphere Diameter UMPF port frame Ø min. (mm) UMPF port frame Ø max. (mm) UMSS Stand UMPF Port baffle Coating Material Remark
UMBB-100 UMBB 100header3

100 mm / 4 inch

12.5
25.4
Post or Bench
BaSO4

ODP97

UMBB-150
UMBB 150header

150 mm / 6 inch

12.5
50.8
Post or Bench
BaSO4

ODP97

UMBB-210
UMBB 210header

210 mm / 8.5 inch

12.5
76.2
Post or Bench
BaSO4

ODP97

UMBB-250
UMBB 250header2

250 mm / 9,8 inch

12.5
76.2

Post or Bench
BaSO4

ODP97

UMBB-300
UMBB 300header

300 mm / 12“

12.5
101.6
Bench
BaSO4

ODP97

UMBB-500
UMBB 500header

500 mm / 20 inch

12.5 152.4
Bench
BaSO4

ODP97

UMBK-130
UMBK 130.78

130mm / 5.1 in

12.5
50.8
Post or Bench

ODM98

ODM98, Thickness 10mm

UMBK-190
UMBK 190.74

190 mm

12.5
76.2
Post or Bench
ODM98

ODM98

UMBK-280
UMBK 280.82

280 mm

12.5 101.6
Bench
ODM98

Bariumsulfate

UMTB-170
UMTB 170header

170 mm / 6.7 inches

12.5 50.8
Fixed Socket
BaSO4

ODP97

UMTB-500-HF umtb500

500 mm / 20“

12.5 152.4
Hinge-frame
BaSO4

ODP97

UMTB-1000
UMTB 1000header

1000 mm / 40 inches

12.5 254
Frame
BaSO4

ODP97

UMTB-1000-HF
UMTB 100HF.161

1000 mm / 40 inches

12.5 254
Hinge-frame
BaSO4

ODP97

UMTK-80
UMTK 80.85 12.5 25.4
Frame
ODM98
UMTK-150
UMTK 150.74

150mm / 6 in

12.5 50.8 Fixed Socket
ODM98

ODM98, thickness 10mm

Portframe Accessories for attachment to port frames for functional expansions

Model Image Description Remark
UMPF upf Port frames for the spheres of the UM series modular construction integrating spheres Different diameters (12.5 - 300 mm). Frame with V-groove for accessory mount.
UMPP
upp Port plugs for UMPF port frame. BaSO4 and ODM98 coating
Flush finish with spherical inner surface
UMPA
umpaf Port adapter for attaching optical fibers, optics, fiber optic sockets, etc. to port frames
UMPB upm Detector baffle for the spheres of the UM series modular construction integrating spheres Baffling of ports to ports, ports to light sources, ports to detectors etc
UMPR upr Port reducer for the port frames of the UM series modular construction integrating spheres Through-holes or knife-edge with different diameters. For use with UMPF port frames
UMMP umm Ports for the spheres of the UM series modular construction integrating spheres Ports without port frames for small wall thickness.
UMSS UMSS BT 250 header Bench-top and post stands for the spheres of the UM series modular construction integrating spheres. Post sockets, flanges and table stands are offered for the different sized base spheres
UFC-11 umpa11 2 Fiber adapter for use with UP and UM type integrating spheres. SMA, FC, SC and ST connectors
LS-OK30
umpfsok30 1 External light source for halogen lamps.
Modular system. 5 - 100 W lamp power
UMPF-LSOK30 umpfsok30 Port frame for use with LS-OK30 light source Optional diffuse window for use between LS-OK30 and the sphere
LS-OK30-FH
LS OK30 FH Filter holder for LS-OK30
Only for temperature-resistant filters
LS-OK30-HPA
LS OK30 FH Breadboard damping filter for gradual damping
LS-OK30-D65
LS OK30 FH D65 Correction filter for halogen lamp LS-OK30
LS-OK30-VA
lsok30 Manually adjustable aperture for LS-OK30
Fine resolution. High light blocking
LS-OK30-VAR
LS OK30 VAM Motorised aperture for LS-OK30
FWVA-170-6×2-RM
FWVA 6x1 RM V1.135 Motorized filter changing wheel with integrated aperture for LS-OK30
Very high intensity dynamics in connection with HPA filters
LH-xxF 10W Birne Halogen lamps 5W to 250W for use with light sources and calibration standards UV and UV-stop lamps. Frosted and non-frosted. Pre-aged
LS-IS1.5
LS IS 1.5 Internal light source for halogen lamps
5 -100 W lamp power
LS-OS1.0 LS OS 1.0 External source for LH-F series halogen lamps up to 20W
LS-OS1.5-LED1
LS OS1.5 External light source can be equipped with up to 24 LEDs in a 5 mm housing.
Usable with NIR LEDs
LS-OS1.5-LED3 LS OS1.5 External light source can be equipped with up to 7 Golden Dragon or Star LEDs.
Heat sink with active airflow
UMPA-1.5-HL-MB
umpahl Features: For attaching the LINOS microbank from the company QIOPTIQ.
UMPA-0.5-T UMPA 0 v2.5 T USB Temperature sensor for UMPF-0.5 port frame USB or RS232
UMLA-SHAP-E14 umlashape14 E14 lamp socket for the use with integrating spheres. Four wire connection scheme.
UMLA-SHAP-E27 umlashape27 E27 lamp socket for the use with integrating spheres. Four wire connection scheme.
UMLA-SHAP-G9 umlashapeg9 G9 lamp socket for the use with integrating spheres. Four wire connection
UMLA-SHAP-GU10 umlashapgu10 GU10 lamp socket for the use with integrating spheres. Four wire connection
UMLA-SHAP-GU5.3 umlashapgu53 GU5.3 lamp socket for the use with integrating spheres. Four wire connection
UMLA-SHAP-GX53 umlashapgx53 GX53 lamp socket for the use with integrating spheres. Four wire connection
UMPA-0.5/11 umpa11 Port adapter for use with UMPF-0.5 port frame to attach TD-11, PD-11 or VL-11 detectors and UFC-11 fiber connectors Optional diffuser window
UMPA-1.0/FAO umpaf Port adapter for use with UMPF-1.0 port frame to attach fiber bundles, detectors and optics with angle alignment Adaptation by subsequent machinin
UMPA-1.0-LGA-13 umpamb Port adapter for use with UMPF-1.0 port frame. To attach light guides with 13mm mount
VL-1101 + UMPA-0.5-11-RD vl1101 1 Photopic detector with UMPA-0.5 adapter
CT-4501 ct1 RGB detector head for photopic illuminance and luminous color Monitor detector for sphere sources.

Examples of integrating sphere light sources

Model Image Illuminated field Ø Sphere Light Source Stand Remark
UMBB-300-BT-S-1-3 UMBB 300BTS header 101,6 mm
300 mm BaSO4
3 x UMPF1.5
1 x UMPF-LS-OK30
Bench-top
Configured integrating sphere without light sources
ISS-17-VA ISS 17 V2.77 50 mm
170 mm BaSO4
Halogen lamp 12V/100W
Bench-top
ED-ISS-100-MD control electronics in 3/4 19“ rack mounting.
ISS-30-VA

ISS 30 VA V01 webheader 76,2 mm
300 mm BaSO4
1 x LS-OK30 with lens and
manual controlled LS-OK30-VA
table frame
Integrating sphere source with 100 mm diameter output port with very high luminance uniformity and manually adjustable intensity.
ISS-50-LU-FE ISS 50 FRP005 1 webheader 500 mm Hemispherical
500 mm
BaSO4
3 x LSOK30 with manual iris.
Filter change wheel for all three lamps.
Table frame with manipulator for positioning the camera in the cone center
White balance for compact super wide angle and fish-eye cameras at three different color temperatures.

Examples of integrating sphere optical detectors

Model Image Measurement Port Sphere Detector Stand Remark
UMBB-100-D-SEP
umbb 100d 10 mm with guide sleeves
100 mm
BaSO4
UMPF-0.5 Detector port
Post
Detector application for laterally radiating fibers.
ISD-10 ISD 10 58 25.4 mm Ø
(UMPF-1.0)
100 mm
BaSO4
12.5 mm Ø
(UMPF-0.5)
Post Preconfigured sphere, detector applications for 2π sources.
ISD-15P-VL
ISD 15P VL.71 38.1 mm Ø (UMPF-1.5)
150 mm
ODM98
Photopic; f1 ≤ 5%
Socket
Long-term stability synthetic coating of sphere and baffles
ISD-30-BT umbb300b 101.6 mm Ø
(UMPF-4)
300 mm
BaSO4
12.5 mm Ø
(UMPF-0.5)
Table frame Preconfigured sphere of the UM series modular construction integrating spheres. Features: detector applications for 2π sources. 4.0 in / 101.6 mm dia measurement port.
TPI21-TH
TPI21 TH content1 76.2mm hemispherical protective window
100 mm
BaSO4
BTS2048-VL-TEC
Z-axis motor driven
LED luminous flux test system with adjustable operating temperature

Examples of integrating sphere for optical material properties

Model Image Sphere Measurement geometry Sample holder Light source Detector Remark
ISMP-50-R-V01
ISMP 50 R V01.90 500 mm / BaSO4

8/d geometry
2856K +/-20K
Photopic; f1 ≤ 6%
